VPN

WireGuard is a secure network tunnel, operating at layer 3, implemented as a kernel virtual network interface for Linux, which aims to replace both IPsec for most use cases, as well as popular user space and/or TLS-based solutions like OpenVPN, while being more secure, more performant, and easier to use. It is essential to have traffic flowing between your hosts flowing via an encrypted tunnel.

Install wireguard

NOTE: In this example, I will configure HOST-A on 172.168.25.1 and HOST-B on 172.168.25.2

On HOST-A install the wireguard suite as follows

sudo apt install wireguard
wg genkey > private
wg pubkey < private
ip link add wg0 type wireguard
ip addr add 172.168.25.1/24 dev wg0
wg set wg0 private-key ./private
ip link set wg0 up
wg showconf wg0 > /etc/wireguard/wg0.conf
echo "SaveConfig = true" >> /etc/wireguard/wg0.conf
wg-quick save wg0

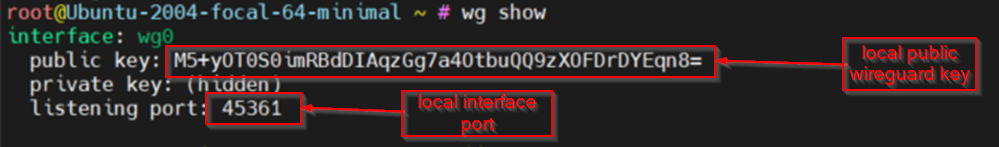

wg show

Take note of interface: wg0 public key and listening port on HOST-A

Open up the firewall for the port on which wg expose the endpoint

firewall-cmd --add-port=<listening port>/tcp --permanent
service firewalld reload

On HOST-B configure as follows

sudo apt install wireguard
wg genkey > private
wg pubkey < private
ip link add wg0 type wireguard
ip addr add 172.168.25.2/24 dev wg0
wg set wg0 private-key ./private
ip link set wg0 up
wg showconf wg0 > /etc/wireguard/wg0.conf
echo "SaveConfig = true" >> /etc/wireguard/wg0.conf
wg-quick save wg0

Take note of interface: wg0 public key and listening port on HOST-B

firewall-cmd --add-port=<listening port>/tcp --permanent
service firewalld reload

NOTE: Having both HOST-A and HOST-B public key as well as port, you can now establish a vpn tunnel between the 2.

On HOST-A execute the following =>

wg set wg0 peer <HOST-B public key> allowed-ips <172.168.25.2>/32 endpoint <public ip of HOST-B and port (ip:port)>
wg set wg0 peer <HOST-B public key> persistent-keepalive 25
wg-quick down wg0
wg-quick up wg0

On HOST-B execute the following =>

wg set wg0 peer <HOST-A public key> allowed-ips <172.168.25.1>/32 endpoint <public ip of HOST-A and port (ip:port)>
wg set wg0 peer <HOST-A public key> persistent-keepalive 25
wg-quick down wg0
wg-quick up wg0

The persistent-keepalive between HOST-A and HOST-B will send a packet to each peer to keep tunnel active
Both hosts should now be reachable via a secure VPN tunnel
